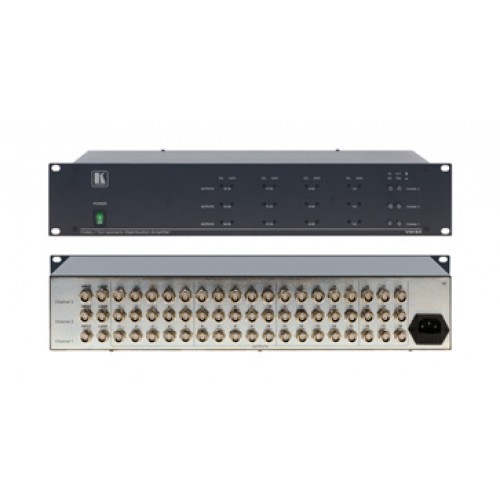

Kramer VM-54-Versatile Video Distribution Amplifier *Used*

Kramer VM-54-Versatile Video Distribution Amplifier *Used*
Brand: Kramer Electronics
Product Code: VM-54
Availability: In Stock
Price: $499.00
Qty:     - OR -   Add to Wish List
Add to Compare

New price: $995.00 This unit is used and is in excellent condition

The VM−54 is a high−performance dual−mode distribution amplifier for composite, SDI, or component video signals. It can also be configured as a 1:18 distribution amplifier for component (YUV) signals and provides controls to compensate for signal losses inherent in long cable runs.
  • High Bandwidth - 365MHz (−3dB).
  • HDTV Ready.
  • Dual-Mode - Configure as either a 1:54 (Composite/SDI) or a 1:18 (Component) DA.
  • Grouped Level (Gain) and EQ (Peaking) Controls.
  • Video AC/DC Coupling Selection.
  • Looping Input.
  • Selectable Input Signal Termination.
  • Standard 19” Rack Mount Size - 2U.
  • INPUTS: 3 composite/component video looping, 1Vpp/75Ω on BNC connectors with termination switches.
    OUTPUTS: 3x18 composite/component video, 1Vpp/75Ω on BNC connectors.
    MAX. VIDEO OUTPUT: 2Vpp.
    VIDEO BANDWIDTH (-3dB): 365MHz.
    DIFF. GAIN: 0.03%.
    GAIN RANGE: −0.8 to 1.9dB.
    DIFF. PHASE: 0.09Deg.
    EQ. RANGE: 0 to 2.3dB @4.4MHz.
    K-FACTOR: <0.05%.
    VIDEO S/N RATIO: Better than 70dB.
    CONTROL: 75Ω termination switches on each input.
    NON-LINEARITY: 0.2%.
    COUPLING: AC or DC for each channel, selectable from front panel.
    POWER SOURCE: 230V AC, 50/60Hz, (115V AC USA) 10VA.
    DIMENSIONS: 19" x 7" x 2U W, D, H, rack mountable.
    WEIGHT: 4.4kg (9.8lbs) approx.
    ACCESSORIES:

    Power cord.
