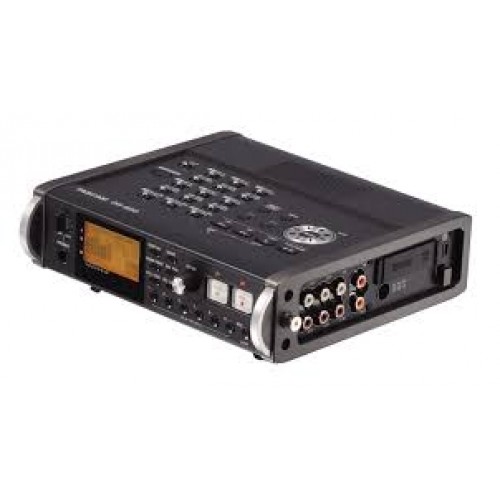

Tascam DR-680 High-Res 8-Track Portable Recorder

Tascam DR-680 High-Res 8-Track Portable Recorder
Brand: Tascam
Product Code: DR-680
Availability: Out Of Stock
Price: $999.99
Qty:     - OR -   Add to Wish List
Add to Compare

An Excellent Multichannel Field Recorder!

Whether you're working on a documentary, a festival short, or tracking a band on site, one thing's for certain, you're going to need a reliable portable recorder that's up to the task. These days, there are many perfectly fine portable recorders out there for tracking small-scale music or jotting down song ideas, but when you have to face the reality of on-site production, two or even four tracks of recording at a time just aren't going to cut it. What you need is a portable recorder that gives you flexible options so that you can adapt to any situation. What you need is a TASCAM DR-680 8-channel portable SD recorder!

Six analog inputs with microphone preamps (four XLR/TRS, two TRS only) give the TASCAM DR-680 plenty of available I/O for microphones or other analog-only gear. Each channel also has its own limiter and highpass filter, which is a real bonus when you're trying to nail the first take. You also get two channels of S/PDIF, for a total of eight simultaneous inputs at up to 96kHz/24-bit quality, all recorded on inexpensive SD or SDHC card media. That's easily enough to record a full surround sound mix plus a couple of dialog mics, and if you still have a pair of channels left over, the DR-680 can also record a stereo mix, complete with level and pan assignments - all at the same time!

Convenient functions such as level-dependent auto-recording, pre-recording, and on-the-fly marking make professional-quality production not only possible, but easy. A large (128x64) backlit LCD display makes navigating through the DR-680's settings headache free, and a built in speaker lets you review your work with headphones. Need more channels? No problem! A convenient cascade function allows you to bridge two DR-680s together. Cascaded together, a pair of DR-680s can provide you with up to 14 simultaneous tracks of recording on battery power alone. Overall, the TASCAM DR-680 makes portable multi-channel recording easier and more affordable than ever before!

TASCAM DR-680 Portable Multi-channel Field Recorder Features at a Glance:

  • 8-track portable recording
  • Records to SD/SDHC card media (not included)
  • Record 8 individual inputs or 6 inputs plus a stereo mixdown
  • Up to 96kHz/24-bit Broadcast WAV file resolution for 8 channels
  • Stereo 192kHz/24-bit recording mode
  • 4-channel MP3 recording
  • Digital monitor mixing (level and pan) with recordable stereo mixdown
  • Ideal for surround music and effects recording
  • Cascade function for running 2 units together
  • Pre-recording feature
  • Auto-recording mode begins recording when the input reaches a certain level
  • Mark function during recording/playback
  • Edit functions such as divide and delete
  • 128x64 backlit LCD display
  • Powered through (8x) AA batteries or (included) PS-1225L adapter
  • Premium AKM Audio4Pro 192kHz A/D converters with over 100dB signal to noise ratio
  • 6 x mic pres with 60dB of gain and phantom power
  • 4 x XLR/TRS combo mic/line inputs
  • 2 x 1/4" TRS only mic/line inputs
  • Highpass filter and limiter on each input
  • 6 x RCA unbalanced line outputs
  • S/PDIF digital in and out
  • USB 2.0 (mini B) connection for computer
  • Built-in speaker
  • 1/4" stereo headphone output
  • Included accessories: PS-1225L power supply, shoulder strap
  • Dimensions: 7.95" x 2.12" x 6.93"
  • Weight 2.65 lbs. without batteries


The TASCAM DR-680 portable recorder makes recording multi-track audio in the field simply, affordable, and fun!

Specification Detail
Simultaneous Rec Tracks 8
Simultaneous Play Tracks 8
A/D Resolution 24-bit/96kHz
Built-in Mic(s) No Microphones
Audio Interface No
Analog Input Types 4 x Combo, 2 x TRS
Analog Inputs 6
Analog Output Types 6 x RCA, 1 x TRS (Headphone)
Analog Outputs 7
Digital Input Type 1 x S/PDIF
Digital Inputs 1
Digital Output Type 1 x S/PDIF
Digital Outputs 1
Headphone Output type 1/4"
Headphone Outputs 1
Built-in Speaker Yes
Memory (internal) No Internal Memory
Memory (removable) SD/SDHC (Not Included)
Built-in Effects Yes
USB Yes
FireWire No
Power Supply AC Adapter Included, 8x AA batteries Optional
Max Battery Life 4 hrs.
Stand Mountable No
Height 2.12"
Width 7.95"
Depth 6.93"
Weight 2.65 lbs.
Manufacturer Part Number DR680
