ColorSource CYC

ETC ColorSource Cyc.  Model #CSCYC.  Part #7415A1000

The ColorSource®CYC is a dedicated cyclorama fixture with a sole purpose of creating beautiful, smooth washes of light on a cyclorama or wall. And it delivers! This is the first ETC fixture to use this unique five-color mix; red, green, blue, indigo, and lime, which gives a great range of colors at an affordable price. With a compact and lightweight design, it fits easily on your stage floor or hangs from a pipe.

Sometimes size is everything.

The ColorSource CYC is dedicated to a single purpose: creating beautiful, smooth washes of light on a cyclorama or wall. And it delivers! Its compact, fan-free design features a unique five-color mix of red, green, blue, indigo, and lime, giving an incredible range of colors at an affordable price.

Gone are the days of endless tinkering to get decent lighting on the cyclorama. ColorSource CYC is pre-focused. Simply set the fixture on the deck or hang it level and you’re done!



Working together for complete coverage

ColorSource CYC fixtures work as a system to create an even, smooth wash by blending not only with their neighbor but their neighbor’s neighbor.

Because these fixtures are fanless, and all-LED, they consume a fraction of the power of other standard CYC fixtures. And LED means no more gel! Your budget can go toward something other than replacing lamp after expensive lamp, and the saturated colored gel that burns through after a couple of shows.

PRODUCT FEATURES • All LED (RGBI-L) • Rich, bright light • Fanless operation • Stand-alone presets and sequences • Simple setup and user interface

COLORSOURCE CYC SHIPS WITH: • Hanging yoke • Power cable

Connector options:

• -X = bare lead, no connector
• -A= Edison connector
• -B= Stage pin connector
• -C= Twistlock connector
• Powercon jumpers are also available, please see links below

Color options:  Black, white, silver, and custom colors available.

Notes: C-clamp sold separately

Source

• LED Details 42 Lumileds LUXEON C LEDs
• Max Lumens 4117
• Lumens Per Watt 31
• L70 Rating (Hours to 70% output) 50,000 hours (estimate pending testing data)
• Color
• Colors Used Red, green, blue, indigo and lime
• Color temperature range Variable
• Calibrated Array Yes
• Red Shift No

Optical

• Beam angle range N/A (asymmetrical)
• Gate size N/A
• Aperture size N/A
• Pattern projection No
• Pattern size N/A
• Camera flicker control/Hz range 1,200 Hz (default) and 25,000 Hz (via RDM)

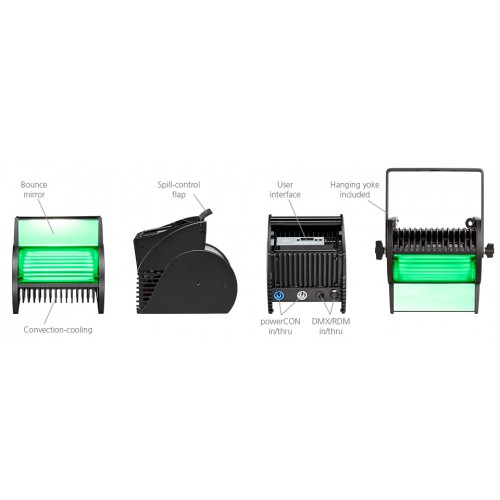

• Notes The ColorSource CYC has a built in accessory for spill control

Control

• Input method DMX-512 via 5-pin XLR or RJ45 connector
• Protocols DMX
• Modes (Footprint) 5 channel- IRGBS (5) Direct- IRGBILS (7) 1 channel- I (1) RGB- RGB (3)
• RDM configuration Yes
• UI type 7-segment address display
• Local control Yes
• Onboard presets Yes (12)
• Onboard sequences Yes (5)
• Onboard effects No
• Fixture to fixture control Yes
• Notes Local level control via UI

Electrical

• Voltage range 100V-240VAC, 50/60Hz

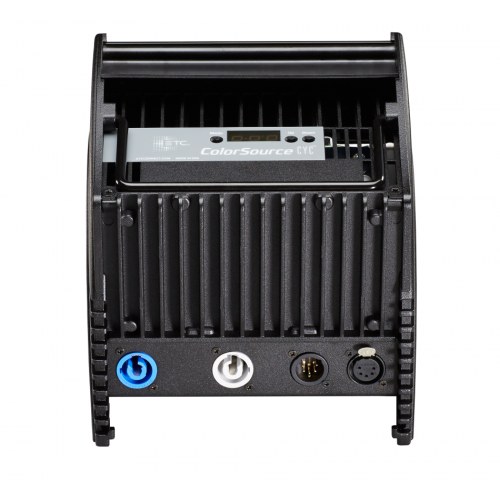

• Input method powerCON in and thru
• Inrush 39A (first half-cycle) at 120V
• Fixtures per circuit 9 (20A switched circuit, R20 module or similar)
• Wattage (Typical/Standby) 133W/1.4W
• Current draw 1.11A at 120V

Thermal

• Ambient operating temp 0-40° C (32-104° F)
• Fan (controllable) No (N/A)
• Droop compensation Yes
• dB range 18.5dBa average at 1m
• BTUs/hour 418

Physical

• Materials Die-cast aluminum and plastic
• Color options Black, white, silver or custom color
• Mounting options Yoke and floor
• IP rating IP-20
• Weight 10.3 lbs (4.67 kg)
• Included accessories Hanging yoke, power cable

ADDITIONAL ORDERING INFORMATION

Accessories MODEL DESCRIPTION

400SC Safety Cable

400CC C-Clamp

DPA-A 5’ powerCon to parallel blade U-ground (Edison) connector

DPA-B 5’ powerCon to 20A two-pin and ground (stage-pin) connector

DPA-C 5’ powerCon to grounded 20A twistlock connector

DPA-X 5’ powerCon to bare-end power input lead

DPJ-5 5’ powerCon to powerCon fixture to fixture jumper

DPJ-10 10’ powerCon to powerCon fixture to fixture jumper

NOTES ABOUT LED LUMINAIRES All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Thermal conditions can be affected by ambient temperatures and orientation. Based on the LED manufacturer’s B50 L70 specification, a ColorSource CYC luminaire will achieve ~70% of its initial output after an estimated 50,000 hours of typical usage*. In individual situations, LEDs will be used for different durations and at different levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs. *Note: Life tests are currently underway. Results are pending.
