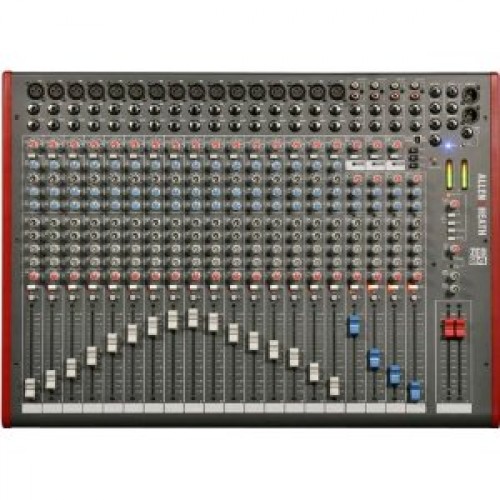

Allen & Heath 24 ch. (16 Mic/Line + 4 Stereo) Mixing Console

ZED-24 has an incredibly advanced feature-set for a mixer at this level – it has 23 independent sources to the mix, 10 independent outputs, 4 aux sends, Configurable USB audio in/out makes it easy to capture stereo recordings, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities. In fact, ZED-24 is so packed full of great features that you’d think it would cost much, much more!

What's great about the ZED-24 The feature-set is incredibly advanced for a mixer at this level – it has 23 independent sources to the mix, 10 independent outputs, 4 aux sends, a USB send & return for PC or Mac recording, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities. In fact, ZED-24 is so packed full of great features that you’d think it would cost much, much more! It can be used for many different tasks, whether in live performance, utilizing plug-in effects via USB, live recording via USB and Cakewalk, studio recording or mixing down to produce your own 2-track recordings. What about the sound quality? Our chief designer, Mike Griffin, has been at the forefront of audio innovation for many years and has developed the designs for our spectacularly successful MixWizard and GL series professional live mixers. Mike is always striving to produce the best possible sound for our mixers, and for ZED has produced the ‘DuoPre™’, a mic preamplifier which sounds as sweet as a nut, as pure as the driven snow. The DuoPre™ combines an optimised line input circuit together with the microphone preamp circuit so that it will not colour or distort your sound, will give you lots of headroom and give you a truly professional feel. Features Inputs One of the great things about the ZED series is the number and variety of things you can plug in. In addition to the sixteen mono channels there are four stereo channels, each with a main stereo input on jack sockets, and with the ability to take additional stereo inputs from phono sockets or from the USB audio input, flexibility gives you control. In all, ZED-24 boasts 129 different controls on its front panel - way more than any of the competition! 16 mic/line channels are provided on ZED-24 - plenty for mics or DI boxes for larger bands or demanding applications requiring more inputs than the ZED-14. 4 stereo line inputs, 3 with dual inputs. All inputs have independent gain control. DuoPreTM Based on the proven pre-amps from the hugely successful PA series, the ZED series has new DuoPreTM pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input. EQ section ZED-24 features a responsive 3-band, swept mid frequency design with MusiQ - optimised slope (or Q factor) for equalising individual instruments. HF and LF also boast Xtra Boost giving you extra control. Auxiliary sends 4 aux sends are provided, of which 1&2 are prefade for foldback monitoring, and 3 & 4 post-fade for effects sends. A stereo signal can be sent from auxes via USB to computer to create 2 separate record feeds independent of the main LR mix (1&2) and or used as FX sends (3&4). USB audio flexibility Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way we have implemented this on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! Quality audio to and from your PC or Mac. Three switches provide different send/return configurations for recording, playback and utilising external FX. Build At this level, most mixers are built using a single, flat PCB with all the pots and switches attached at right angles. ZED-24 utilises individual vertically mounted channel circuit boards with each rotary control fixed with a metal nut to the front panel - making a much more robust product that will resist damage and give years of reliable use. ZED also has professional 100mm faders for ultimate control over your levels. SONAR LE - provided Free! We have teamed up with Cakewalk to bundle SONAR LE with this ZED mixer. The two team up together in many ways - for example straightforward recording of a stereo mix, recording tracks individually to build up a song, or for inserting a SONAR LE effects plug-in. Learn more about SONAR LE at the Cakewalk website... Other features: Insert points High pass filter Stereo imaging control on every channel channel mute switches stereo return 2-track return Advanced monitoring facilities ¼" and 3.5mm headphones outputs stereo record out alternative stereo out mono sum of LR output main LR 12-bar LR meters master controls for aux1&2

• 16 mono channels
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• Channel insert
• Super wide gain ‘DuoPre’ mic line input
• 3 band EQ with MusiQ
• 4 auxes
• Illuminated mute
• Sound image pan
• Illuminated PFL & peak warning indicator
• ALPS 100mm faders
• 4 stereo channels with 2-band EQ and inputs for extra sources
• Stereo returns & playback
• All inputs with level control
• 12 bar meters
• Mono/stereo function on auxes 1&2
• Monitor output section
• Alt stereo output source
• Configurable USB stereo audio in/out
• Cakewalk SONAR X1 LE bundled with mixer
• Rack ears available

USB audio flexibility

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-

Send options:

1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4

Return options:

1) To Stereo 3 channel

MusiQ

ZED-24 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.

DuoPre™

Based on the proven pre-amps from the hugely successful PA series, ZED-24 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a
higher input impedance.

SONAR X1 LE – Provided Free!

We’ve included Cakewalk SONAR X1 LE with ZED-24 so you can immediately start to use it to create your own music – just add a PC and it couldn’t be easier to get going. You’ll be able to record from your ZED mixer, create tracks and arrange songs, then play back to ZED via the USB port. You can use SONAR X1 LE and your ZED mixer together in many ways – e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.
