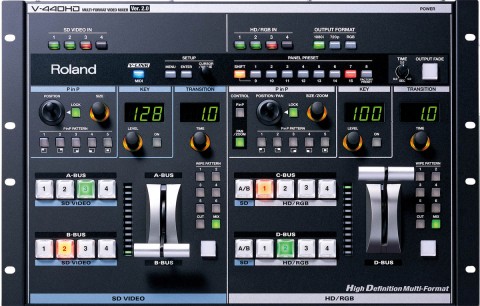

Roland V440HD Video Mix/Live Switcher

Brand: Roland / Edirol
Product Code: V440HD
Availability: 2 - 3 Days

Price: $9,995.00

Qty: - OR - Add to Wish List
Add to Compare

The V440HD is a Multi Format Video Mixer with affordable price. This can mix all available video signals. HD video(1080i or 720p), SD Video(NTSC or PAL)and RGB signal (upto SXGA). Up to 8 channels can be input (4SD + 4HD or RGB) Multiple units connectable for multi screen outputs.

Video Processing

Video Format: SD : NTSC or PAL [CVBS, S (Y/C)]
HD : 1080/59.94i/50i SMPTE274M (Y/Pb/Pr TriLevel Sync), 720/59.94p/50p SMPTE296M (Y/Pb/Pr TriLevel Sync)
RGB Input : 640x480/60/75, 800x600/60/75, 1024x768/60/75, 1280x768/60/75, 1280x1024/60
* RGB VH: positive/negative logic
* VESA DMT Version 1.0 Revision 10 conform
RGB Output : 640x480/75, 800x600/60/75, 1024x768/60/75, 1280x768/60/75, 1280x1024/60, 1366x768/60/75
* VESA DMT Version 1.0 Revision 10 conform

640x480/60 (640x480/60 pixel rate is 25.0MHz ( 0.014) It may not be displayed correctly, depending on the display/projector.)
Video Sampling Rate: SD : 4:2:2 (Y/Cb/Cr) 8-bit 13.5 MHz (BT.601)
HD : 4:4:4 (Y/Pb/Pr) 8-bit 74.1758 MHz / 74.25 MHz
RGB : 4:4:4 (R/G/B) 8-bit 25 MHz to 110 MHz; Video Transition : Cut, Mix, Wipe (6 Patterns, Reverse, SoftEdge)
Composition FX : Picture in Picture, Chroma Key (Blue/Green), Luminance Key (White/Black), Picture in Picture with Zoom/Pan (HD/RGB side)
Multi-Screen Presentation : 2 screens x 1 line, 3 screens x 1 line, 2 screens x 2 line, 3 screens x 2 lines
Synchronization Multiple Units by MIDI
Master Fade : 0 to 4 seconds Black or White
Effects

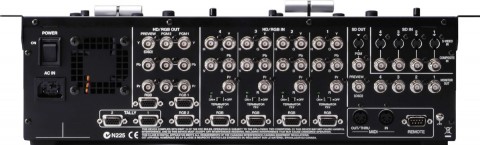

Connectors

SD Input: S-Video (Y/C) Preferential x 4 : 4 pin mini DIN type (Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms)
Video (composite) x 4 : BNC type (1.0 Vp-p, 75 ohms)
HD/RGB Input * BNC Type or D-sub Type are In/ThruOut Use combinedly: BNC Type x 4 : HD: Y/Pb/Pr (1.0 Vp-p, 75 ohms, TriLevel Sync), RGB:R/G/B (0.7 Vp-p, 75 ohms), H (5VTTL), V (5VTTL)
D-SUB 15pin Shrink Type x 4 : HD: Y/Pb/Pr (1.0 Vp-p, 75 ohms, TriLevel Sync, RGB:R/G/B (0.7 Vp-p, 75 ohms), H (5VTTL), V (5VTTL)
SD Output: PGM S-Video (Y/C) : 4-pin mini DIN type (Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms)
PGM Video (composite) : BNC type (1.0 Vp-p, 75 ohms)
Preview (composite) : BNC type (1.0 Vp-p, 75 ohms), OSD Menu Output
HD Output: PGM Component HD : BNC type x 2 (1.0 Vp-p, 75 ohms, TriLevel Sync)
Preview Component HD : BNC type (1.0 Vp-p, 75 ohms, TriLevel Sync), OSD Menu Output (selectable Display
RGB Output: PGM RGB : D-sub 15 pin Shrink Type x 2 (R/G/B 0.7 Vp-p, 75 ohms, 5 VTTL Sync)
Preview RGB D-sub 15 pin Shrink type (0.7 Vp-p, 75 ohms, 5 VTTL Sync), OSD Menu Output (selectable Display)
* Component & RGB Outputs are selectable
Remote Control Interfaces: MIDI 5 pin DIN Type (In, Out/Thru)
REMOTE terminal (RS-232C D-sub 9pin
TALLY Output: for SD Section D-sub 15 pin Shrink type, Input (max): 12 V, 200 mA Open collector Type
for HD Section D-sub 15 pin Shrink type, Input (max): 12 V, 200 mA Open collector Type
Others: Power Supply : AC 117 V, AC 230 V, AC 240 V (50/60 Hz), AC 220 V (60 Hz); 50W
Power Consumption
