Ace Backstage AC Isolated Back Boxes

AC ISOLATION BACK BOXES (#ISO) GENERAL DESCRIPTION

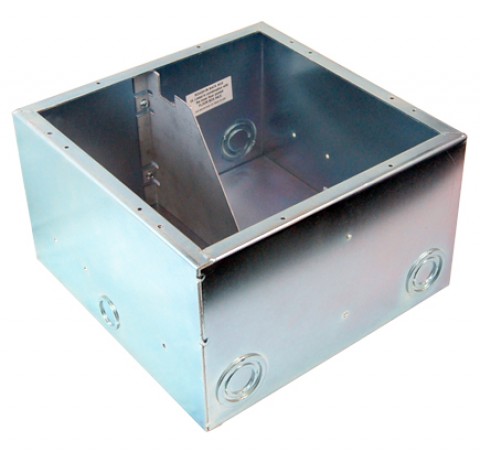

Isolated ACE Back Boxes (ISOXXXBBX) include a galvanized steel bracket mounted inside the back box to provide separation and isolation between high and low voltage for ACE Backstage Stage Pockets. Installing ISO Back Boxes during the rough-in stage of construction saves the installer time and hassle in the finish-stage. High voltage conduit can enter the back box through combination knockouts on one side of the back box and low voltage through the opposite side. The connector and AC panels can be terminated and left inside the ISO back box until carpet is laid or floors are finished. In the final, finish stage the installer can pull the terminated connector panels through the back access opening in the ACE Pocket and secure the pocket bezel to the finished floor.

The Isolation Bracket sits tightly beneath the pocket, inside the back box, to maintain secure separation of high and low voltage, ensuring manual isolation.

*Not suitable for Mini or Half Back Box applications.
