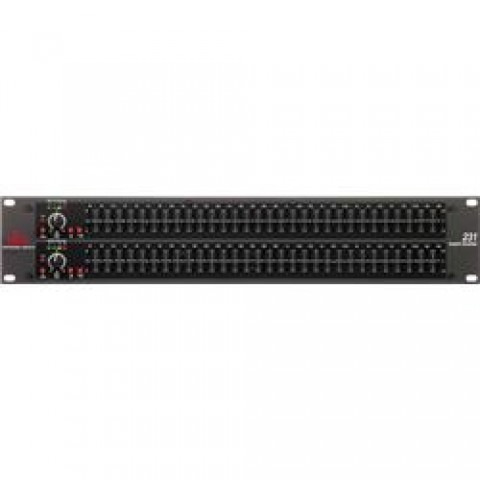

DBX 231 Dual 1 Band Graphic Equalizer
Add to Compare
MSRP: $279.95 You save $79.96 at NorrisAV.com!
The 231 has been discontinued. Please see the 231s.
With a lineage extending back to the revered 12 and 20 Series graphic equalizers, the dbx® 231 easily lives up to the dbx reputation at a price point which can find a home in the tightest of budgets. Besides including two 31-band channels of 1/3-octave equalization, the 231 also offers ±6 or ±12 dB boost/cut range; XLR, 20mm faders and 1/4" inputs; nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. As always, the inevitable result of our meticulous attention to detail and top-quality componentry is exceptional sound, performance, and reliability.
The 2-Series represents a major step forward in the performance of entry-level graphic equalizers. From its amazing 10Hz to 50kHz frequency response, to its 108dB dynamic range and internal toroidal transformer, the 2-Series offers out of this world specifications with a down to earth price point. Sure to find a home in the studio, on tour and with installed sound venues, the 2-Series is destined to take its rightful place in the lineage of great dbx® signal processors that are the Professional's Choice™. With such affordable quality, there's no longer any excuse for compromising your sound.
- Two 31-band, 1/3-octave Constant Q frequency bands
- Switchable boost/cut ranges of ±6 or ±12 dB
- 12dB per octave 50Hz low-cut filter
- Front panel bypass switch
- ±12 dB input gain range
- 4-segment LED ladders for monitoring output levels
- XLR and TRS Inpts and Outputs
- Internal Toroidal Transformer
- Frequency Repsonse of <10Hz to >50kHz
- Dynamic range of greater than 108dB
SPECIFICATIONS:
INPUT
Connectors: 1/4" TRS, female XLR (pin 2 hot)
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 40k ohm, unbalanced 20k ohm
Max Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1kHz
OUTPUTS
Connectors: 1/4" TRS, male XLR (pin 2 hot)
Type: Impedance-balanaced/unbalanced, RF filtered
Impedance: Balanced 100 ohm, unbalanced 50 ohm
Max Output Level: >+21dBu balanced/unbalanced into 2k ohm or greater
>+18dBm balanced/unbalanced (into 600 ohm)
SYSTEM PERFORMANCE
Bandwidth: 20Hz to 20kHz, +0.5/-1dB
Frequency Response: <10Hz to >50kHz, +0.5/-3dB
Dynamic Range: 108dB
Signal-to-Noise: 90dB
THD+Noise: <0.004%
Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
FUNCTION SWITCHES
EQ Bypass: Bypasses the graphic equalizer section in the signal path
Low Cut: Activates the 50Hz 12dB/octave high-pass filter
Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range
POWER SUPPLY
Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50/60Hz
Power consumption: 15W
Main Connection: IEC receptacle
